6U VPX SOSA-Aligned VITA 91 Ethernet Switch

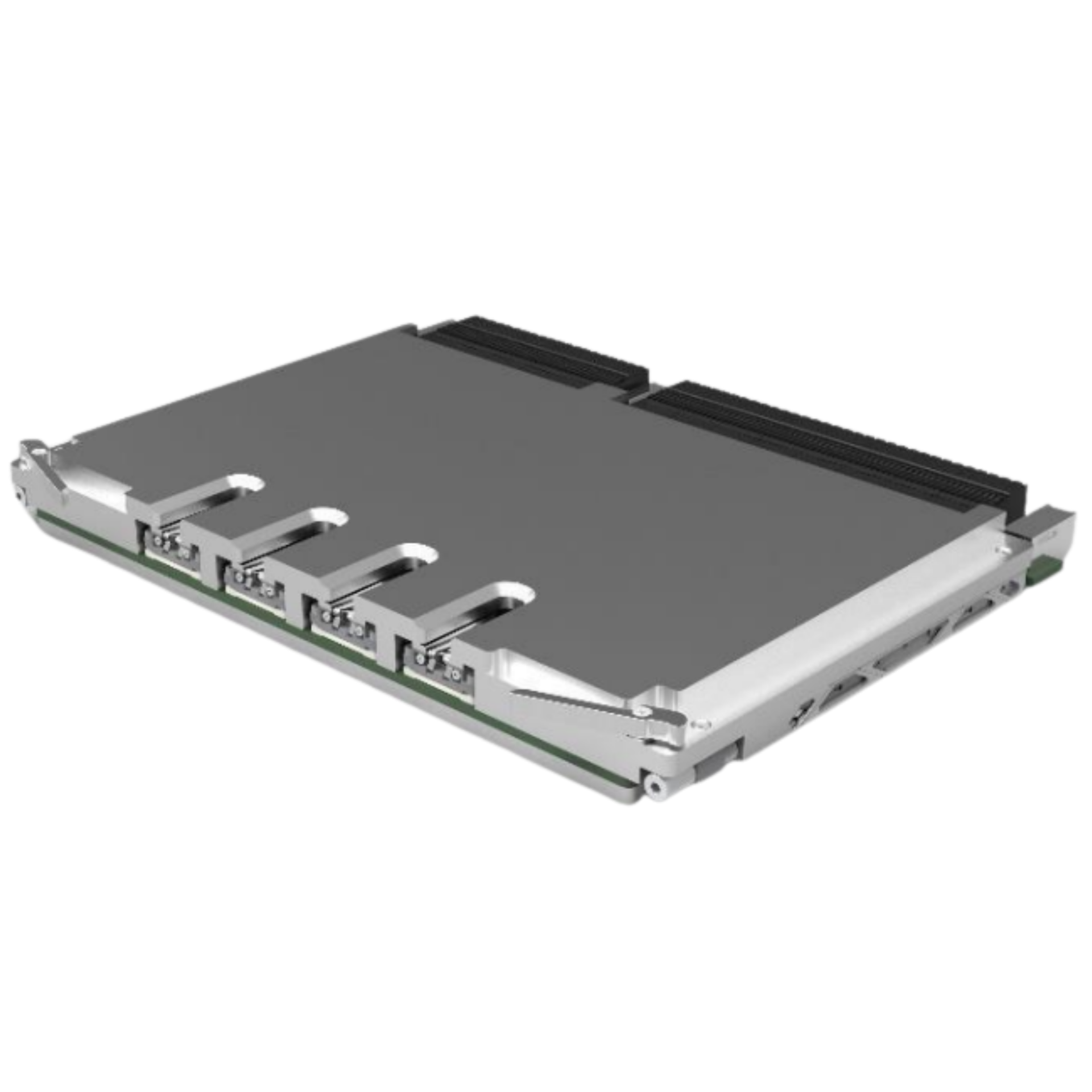

The Open.Tech 6U VPX SOSA-Aligned Ethernet Switch is a rugged, high-speed Layer 2/3 managed switch designed to meet the demands of next-generation C5ISR, SIGINT, EW, and sensor fusion systems. Built on the VITA 91 profile and fully SOSA-aligned, it delivers up to 10.4 Tbps of switching throughput across 216 or 240 channels, supporting both 25G and 50G Ethernet over fiber.

This VPX switch is available in two configurations:

• CF-02W600-10X: 240 total channels – 184x 50G backplane + 48x 25G front panel

• CF-02W600-11X: 216 total channels – 184x 50G backplane + 24x 50G front panel

Designed for OpenVPX systems in harsh environments, the switch supports conduction or air cooling, operates from -40°C to +85°C, and is engineered to meet stringent shock, vibration, altitude, and EMI requirements. Its robust mechanical design includes MIL-grade extraction levers, wedgelocks, and SOSA-compliant MIL-HD2 connectors with a 1.80mm pitch and support for 56Gb/s PAM4 signaling.

Key Features & Benefits

• SOSA-aligned VITA 91 compliant for maximum interoperability

• Up to 10.4 Tbps total switching capacity

• Dual configurations:

  • 240 channels (184 backplane @ 50G, 48 front panel @ 25G)

  • 216 channels (184 backplane @ 50G, 24 front panel @ 50G)

• Advanced management suite: CLI, SNMPv3, Web UI

• L2/L3 managed switch with VLAN, PTP, multicast, and QoS

• Supports stacking topologies, port mirroring, LACP, IGMP/MLD snooping

• Precision Time Protocol (IEEE 1588 v1/v2) for time-sensitive networks

• Full diagnostic, logging, and RMON support

• Conformal-coated PCB, MIL-DTL finishes, and aluminum chassis

Mechanical & Ruggedization Specs

• MIL-DTL-5541 Type II, Class 3 aluminum frame

• 7075-T7351 aluminum extraction levers, black anodized

• WaveTherm SW5T-475 wedgelocks, black anodized 6061-T6511

• MIL-HD2 VITA 91 connectors:

  • 4 differential pairs, 8-column configuration

  • 56Gb/s PAM4-ready, shielded contacts with crosstalk suppression

  • 15.7mil drill-compliant pins, optimized impedance, and EMI shielding

• Operating Temp: -40°C to +85°C, Storage: -55°C to +125°C

• Altitude tested to 60,000 ft with rapid decompression

• Meets MIL-STD-461E EMI and shock/vibration profiles

Software Capabilities (Highlights from Page 3)

The onboard software supports:

• SNMP v1/v2/v3, CLI, and Web-based configuration

• VLANs, LACP, Port Mirroring, ACLs, QoS (DSCP/CoS)

• Multicast Routing, IGMP/MLD Snooping

• PTP IEEE 1588, RMON logging, event and alarm configuration

• File uploads, firmware updates, and restore to default options

• Stacking support with automatic topology handling

Applications

This VPX switch is engineered for:

• C5ISR networks and real-time battlefield communication systems

• Electronic Warfare (EW) and SIGINT platforms

• SOSA-aligned sensor fusion and edge compute architectures

• Autonomous vehicle and drone networking systems

• Command and Control (C2) systems requiring high-bandwidth switching
