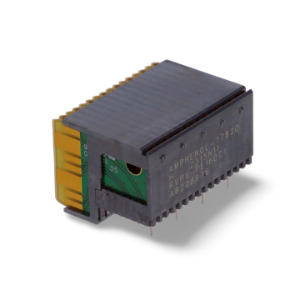

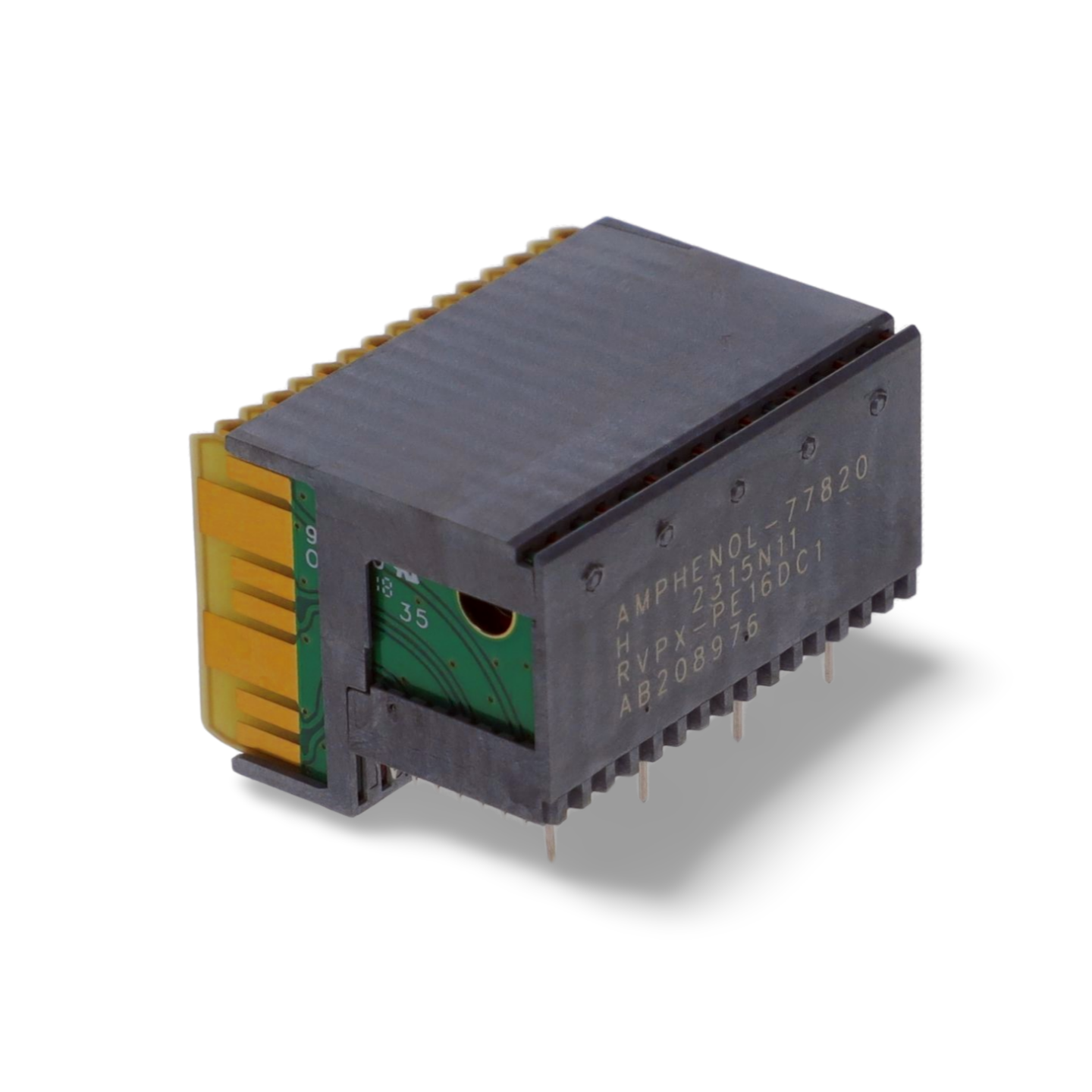

R-VPX Evolution 2.0 VITA 46 Plugin Hybrid Kits

R-VPX Evolution 2.0 Hybrid Kits deliver high-speed signal integrity and high-current power support in VITA 46.30-compliant modular kits, simplifying integration into advanced VPX systems.
*
*
SKU: RVPXKPE20817M2
$204.27
DistributorQuantityBuy
Mouser Electronics45.0SHOP NOW
downloads
Datasheet(s)
Drawing(s)

Optimized for VITA 46.30, VITA 47, and VITA 72 applications, Open.Tech’s R-VPX Evolution 2.0 Hybrid Kits offer a game-changing solution to the challenges of integrating high-speed data and power in one rugged, backplane-mated interface. These kits combine R-VPX Evo2 signal connectors and legacy R-VPX power connectors into a mechanically isolated, performance-optimized package—designed specifically for plug-in module configurations where both signal integrity and power density are critical.

Traditional hybrid connectors with mixed compliant pin types often complicate PCB design and increase risk during installation. Our solution? A kit-based modular approach that separates power and signal contacts into discrete, standardized connectors—each with matching compliant pin sizes to ensure easy installation, full compliance, and maximum reliability.

The Evo2 Hybrid Kits include connector variants in 4, 6, and 10 column configurations, enabling creative slot profile designs and tailored solutions for custom applications. Whether you're designing SOSA-aligned systems, CMOSS-compliant backplanes, or OpenVPX payload modules, these hybrid kits give you the flexibility to meet growing power requirements without compromising signal speed or system integrity.

Benefits:

  • Supports 32+ Gbps signaling on Evo2 contacts

  • Retains full legacy power wafer current capacity

  • Eliminates PCB risk from mixed tail sizes

  • Enables creative, high-density slot profiles

  • Easy to install with standard compliant pin footprints

  • Fully qualified to VITA 46.30, VITA 47, and VITA 72

Typical Applications:

  • OpenVPX and SpaceVPX payload modules

  • SOSA™ aligned platforms

  • CMOSS and VITA 65.0/65.1 modular slot profiles

  • Defense, aerospace, and ruggedized embedded systems

FAQs for R-VPX Evolution 2.0 Plug-in Connectors

1. What is the R-VPX Evolution 2.0 Series Connector System? The R-VPX Evolution 2.0 Series Connector System by Open.Tech is a high-speed, rugged connector solution designed to meet the demanding requirements of military and aerospace applications. It supports data rates exceeding 32 Gbps and is compliant with VITA 46.30 standards.

2. What are the key features of the R-VPX Evolution 2.0 Series connectors?

  • Ultra-High-Speed Performance: Supports data transfer speeds over 32 Gbps.
  • Standards Compliance: Meets VITA 46.30 and Telecordia GR-1217-CORE standards.
  • Intermateability: Compatible with R-VPX, R-VPX EVO1, and TE's RT3 connectors.
  • Rugged Design: Enhanced signal integrity and reduced crosstalk.

3. What applications are R-VPX Evolution 2.0 Series connectors suitable for? These connectors are ideal for military and aerospace applications, including ground vehicles, aircraft, and naval systems. They are also suitable for high-speed, high-density applications in embedded computing systems adhering to VITA standards.

4. How do these connectors ensure signal integrity? The R-VPX Evolution 2.0 connectors utilize advanced design elements, including high-performance dielectric materials and optimized trace geometries, to minimize signal degradation and crosstalk, ensuring robust signal integrity.

5. Are the R-VPX Evolution 2.0 Series connectors compatible with existing VPX systems? Yes, the R-VPX Evolution 2.0 connectors are designed to be fully intermateable with existing VITA 46 backplane connectors, as well as R-VPX, R-VPX EVO1, and TE's RT3 connectors, ensuring seamless integration and interoperability.

6. What are the performance specifications of R-VPX Evolution 2.0 connectors?

  • Data Rate: Exceeds 32 Gbps per pair.
  • Compatibility: Intermateable with previous R-VPX series and TE's RT3 connectors.
  • Testing: Passed VITA 46.30 and Telecordia GR-1217-CORE test specifications.

7. What are the advantages of using R-VPX Evolution 2.0 connectors in military and aerospace applications? R-VPX Evolution 2.0 connectors offer ultra-high-speed data transfer capabilities, robust performance, and durability required for military and aerospace applications. They are designed to withstand harsh environmental conditions, ensuring long-term reliability and reducing maintenance costs.

Comparison of R-VPX Connector Series

The R-VPX series connectors by Open.Tech are designed to meet the rigorous demands of military and aerospace applications, providing high-speed data transfer and robust performance in harsh environments. This comparison highlights the key features and specifications of the R-VPX, R-VPX Evolution, and R-VPX Evolution 2.0 connectors to help you select the best solution for your needs.

Feature/SpecificationR-VPXR-VPX EvolutionR-VPX Evolution 2.0
Data Transfer RateUp to 10 GbpsUp to 16 GbpsExceeds 32 Gbps
Standards ComplianceVITA 46, VITA 47VITA 46, VITA 47, VITA 72VITA 46.30, Telecordia GR-1217-CORE
IntermateabilityCompatible with VPX systemsCompatible with existing VITA 46 backplane connectorsCompatible with R-VPX, R-VPX EVO1, and TE's RT3 connectors
Supported Protocols

PCIe Gen 1, 2, 3

Serial RapidIO, Infiniband

PCIe Gen 4, 1000BASE-KX, 10GBASE-KX4, 100GBASE-KR4

Infiniband SDR, DDR, QDR, Serial RapidIO 12.5 Gbaud

PCIe Gen 4, 5, 1000BASE-KX, 10GBASE-KX4, 100GBASE-KR4

Infiniband SDR, DDR, QDR, Serial RapidIO 12.5 Gbaud

Signal IntegrityOptimized for high signal integrity

Return loss >14 dB up to 8 GHz

Worst-case pair next >30 dB up to 8 GHz

Return loss >14 dB up to 8 GHz

Worst-case pair next >30 dB up to 8 GHz

DurabilityDesigned for rugged environmentsPassed VITA 72 vibration level testing with BER monitoringPassed VITA 46.30 and Telecordia GR-1217-CORE testing
Design EnhancementsStandard designEnhanced dielectric materials and trace geometriesHigh-performance dielectric PCB material, reduced contact surface area, and organizer for impedance reduction
Key ApplicationsMilitary, Aerospace, Embedded SystemsMilitary, Aerospace, Embedded SystemsMilitary, Aerospace, Embedded Systems

For more detailed information and to select the best connector for your needs, visit the respective product pages and download the comprehensive datasheets.

Products specifications
Performance (Max)16 Gbps
Pitch0.071" (1.80mm)
TerminationPress-Fit
Contact FinishGold
Connector UsageDaughtercard
Connector TypePlug, Male Blades
Mounting TypeThrough Hole, Right Angle
Current Rating (Amps)1.5A
RoHS StatusROHS3 Compliant
ECCNEAR99
