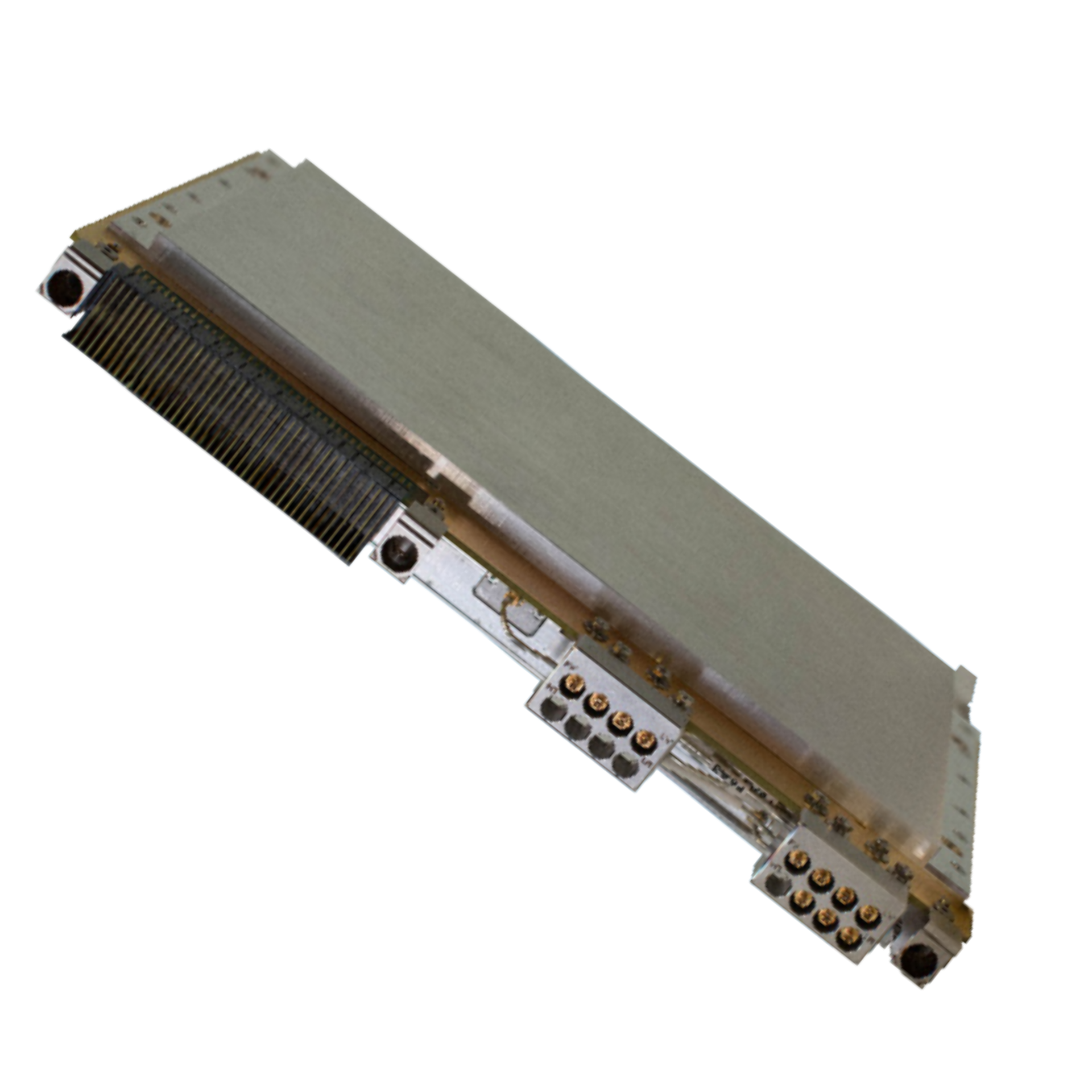

6U VPX Single Channel Down-Converters SOSA-Aligned

Open.Tech’s family of 6U VPX wideband RF down-converters offers scalable RF performance for embedded EW, SIGINT, and radar systems. Aligned with SOSA and VITA 48.2 mechanical standards, these modules deliver high-fidelity RF-to-IF conversion across the 2 GHz–18 GHz spectrum, with IF outputs ranging from 0.75 GHz to 6.0 GHz.

With a choice of 1, 2, or 3 RF inputs, this product family provides system designers with flexible options for sensor fusion, cross-pole/N-channel configurations, or dedicated band targeting. Each module features pre-selection filtering, gain equalization, and >60 dB dynamic range to enable digitizer-ready signal chains.

Available in conduction-cooled, 1.0” pitch designs, these down-converters integrate cleanly into harsh environment 6U VPX platforms. Support for external 10 MHz or 100 MHz clock references ensures coherent operation across multi-module systems.

Feature Highlights

• RF Coverage: 2.0–18.25 GHz

• IF Output Bandwidths from 0.75 to 6.0 GHz

• Channel configurations: Single, Dual, or 3-input switchable

• Supports wideband and sub-octave IF channels

• Pre-selection & gain equalization filters

  • 60 dB channel-to-channel isolation

• Integrated LO synthesizers & phase-coherent clocking

• Designed for high-density 6U VPX chassis (VITA 48.2)

• Power: <50W typical

• Control interfaces: I²C or RS-485

• SOSA-aligned mechanicals and I/O

Use Cases

• ELINT / ESM and radar front-end

• EW spectrum digitization

• Direction finding & beamforming

• Cross-pole/N-channel systems

• Cyber defense RF capture

• Tactical SIGINT & surveillance
